Construction Case & Performance
>
Unlike conventional insulation, HEATCOP SHEET is flexible and can be manufactured/supplied in Roll form, so it is a new flexible insulation that can be processed according to user choice.
HEATCOP SHEET is an eco-friendly organic insulation material that contains Aerogel and has excellent insulation and can be used within a wide temperature range.

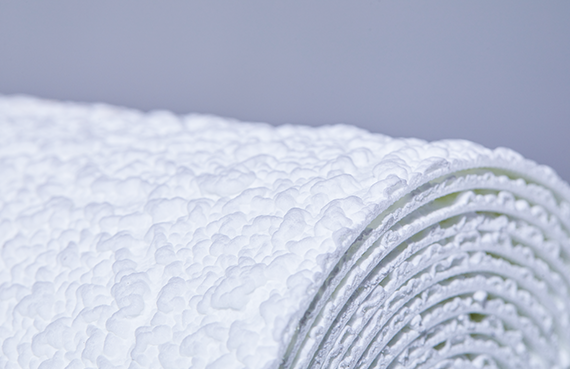

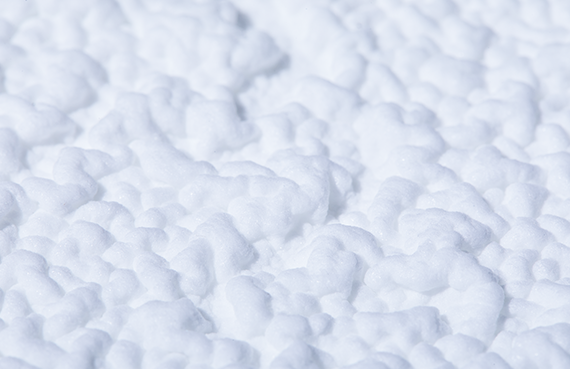

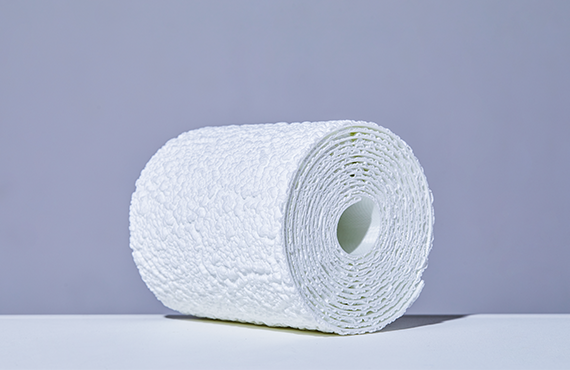

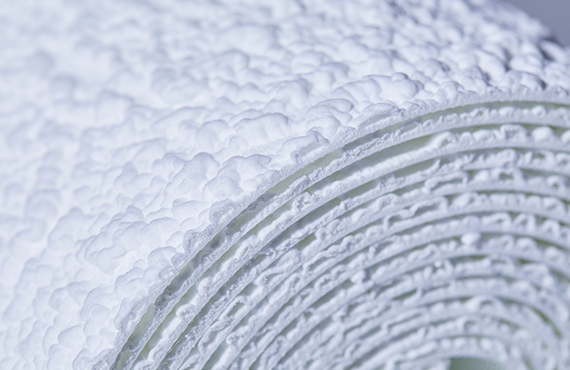

HEATCOP SHEET
Characteristics
- 1. Flexible form different from other insulation
- 2. Various machining/manufacturing/supplying depending on user
- 3. UL94, V0 rated excellent flame retardant
- 4. Eco-friendly organic hybrid insulation material with excellent insulation, RoHS and no halogen substances detected
Application
- 1. Can be attached directly to the surface of metal, wood, cement, etc. or worked in cover or jacket form.
- 2. Reducing energy and costs to maintain low temperatures
- 3. Resolution of frost and condensation on the surface of a type of facility, such as low temperature liquid (liquid nitrogen, LNG, etc.) or piping handling low temperature gases
| Product | Usage Temperature (℃) | Density (g/㎤) | Thermal Conductivity (W/m•K) | Thickness (㎜) | Flame Retardant (UL94) |
|---|---|---|---|---|---|
| HT-100 | -195~100 | 0.400 | 0.034 | 1~2 | V0 |
