Construction Case & Performance
>

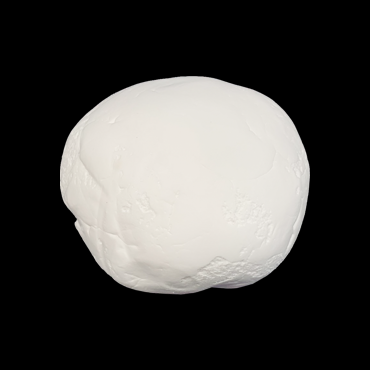

HEATCOP CLAY is an amorphous product like clay, and it is easy to use for any type of object.
It contains Aerogel to minimize heat loss and can be cured by ambient heat or by heating after work.

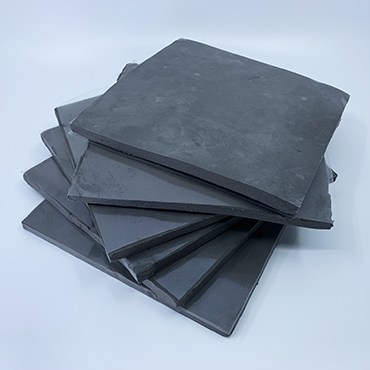

Thermal Insulation Clay - Plate
| Type of product | Plate type |
|---|---|
| Hardening temperature |
|
HEATCOP CLAY
Characteristics

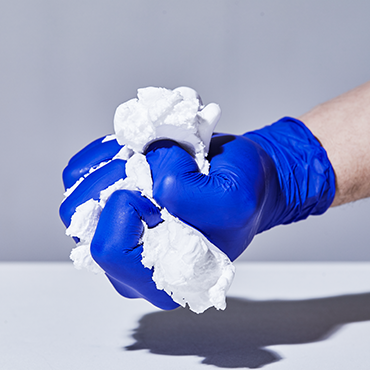

- 1. It is an immovable product, such as rubber clay.
- 2. After attaching to the attachment, it is cured by heat and has excellent adhesion.
- 3. It has excellent moisture resistance, so there is no reduction in insulation performance by moisture.
- 4. UL94, V1 rated excellent flame retardant class.
- 5. It is an eco-friendly product that has not detected harmful substances such as dust, RoHS, and halogen.
Application

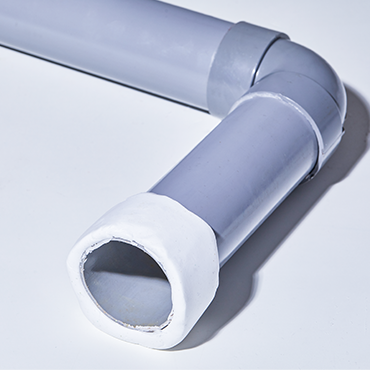

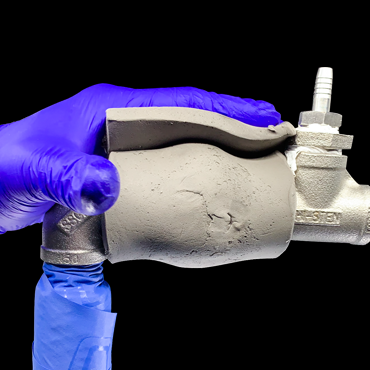

- 1. Directly attached to surfaces where insulation conduction is difficult, such as pipes and valves.
| Product | Applicable Temperature (℃) | Density (g/㎤) | Thermal Conductivity (W/m•K) | Thickness (㎜) | Flame retardant (UL94) | Hardening Condition |
|---|---|---|---|---|---|---|
| Insulation Clay Plate | -60~150 | 0.6 or less | 0.074 | 10 | V1 | Above 140℃, Within 4hrs |

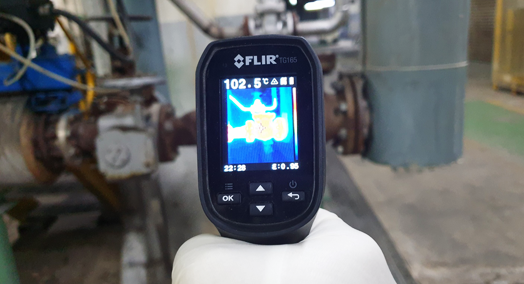

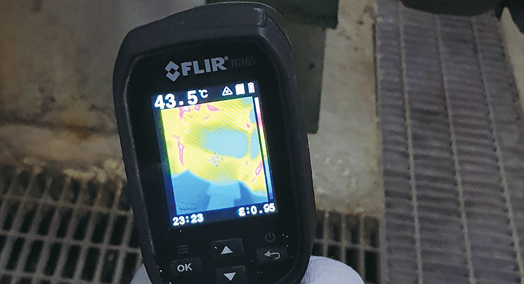

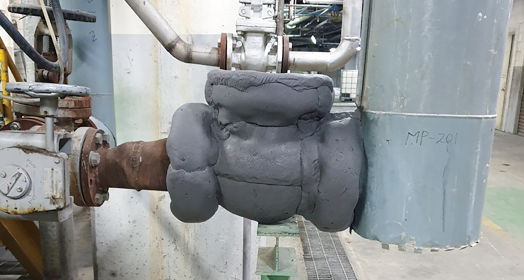

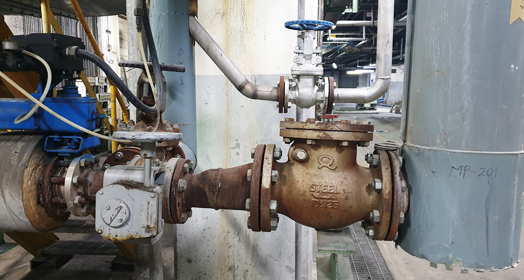

| Before | After |
|---|---|
|
|
|
Thermal Insulation Clay - Amorp
| Type of Product | Amorphous type |
|---|---|
| Hardening temperature |
|

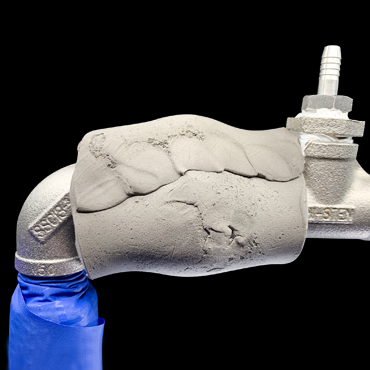

| Scope of use | Applying to work such as curved shapes that are difficult to apply clay-plate |
